- Size: 2
- Place of Origin: CHINA
- Brand Name: WANSHIDA
- Model Number: PY
- Weight: 2.000 kg

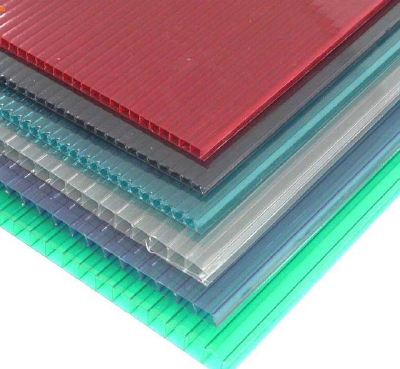

sun board polycarbonate sheets Details:
<
Base Details: | ||||
Color | Thickness | Width | Length | Standard |
(mm) | (mm) | (mm) | (Kg/m2) | |
Clear,Opal,Bronze,Blue,Lake blue,green | 4 | 1220 | 5800 | 1.00 |
6 | 1.30 | |||
8 | 1.50 | |||
10 | 1.70 | |||
Loading Details: | ||||
Thickness | Sheet Size | Quantity | Sheet Size | Quantity |
(mm) | (mm) | (PCS) | (mm) | (PCS) |
4 | 2100*5800 | 550 | 2100*6000 | 1300 |
6 | 2100*5800 | 380 | 2100*6000 | 880 |
8 | 2100*5800 | 290 | 2100*6000 | 670 |
10 | 2100*5800 | 235 | 2100*6000 | 535 |
Others: | ||||
1.Greenhouse,canopy,skylight,roofing,carport,awning,swimming pool | ||||
2.100% virgin,lexan,ge,makrolon pc raw material | ||||
3.unbreakable flexible multi wall,two wall,twin-wall sheet | ||||
4.low price sun board polycarbonate sheets LM-HOLLOWTWINWALL-4-21 | ||||
sun board polycarbonate sheets Loading details:
Thickness(mm) | Sheet size(mm) | Quantity (1*20'GP) | Sheet size(mm) | Quantity (1*40'HQ) |
4 | 2100*5800 | 550 pcs | 2100*6000 | 1300 pcs |
6 | 2100*5800 | 380 pcs | 2100*6000 | 880 pc |
8 | 2100*5800 | 290 pcs | 2100*6000 | 670 pcs |
10 | 2100*5800 | 235 pcs | 2100*6000 | 535 pcs |
sun board polycarbonate sheets Material Characteristics:
No. | Characteristics | Unit | Data |
1 | Impact Strength | J/m | 850 |
2 | Light Transmission | % | 85 |
3 | Specific Gravity | g/cm3 | 1.2 |
4 | Coefficient of Thermal | mm/m °c | 0.065 |
5 | Service Temperature | °c | -40 to +120 |
6 | Heat Conductivity | W/m2°c | 2.3-3.9 |
7 | Tensile Strength | N/mm2 | >60 |
8 | Flexural Strength | N/mm2 | 100 |
9 | Modulus of Elasticity | MPa | 2400 |
10 | Tensile Stress at Break | MPa | >65 |
11 | Elongation at Break | % | 100 |
12 | Specific Heat | kj/Kgk | 1.17 |
13 | Heat Deflection Temperature | °c | 140 |
14 | Effect of Soundproof | dB | 3 - 4 |
sun board polycarbonate sheets Features:
1. Light trasmission: up to 85% sun board polycarbonate sheets |
2. Impact resistance: 80 times that of glass, 15 times that of acrylic sheeting. |
3. Temperature resitance range: -40 to 120 Celsius Degree. |
4. Light weight: only 1/12 ofthe weight of glass with same thickness. |
5. Ultraviolet resistance: with UV protective layer. |
6. Flame resistance: B1 grade |
7. Sound and Heat proof |
Application:
1. Telephone booths |
2. Road sighs and advertisements |
3. Billboards on lamp boxes |
4. Lighting and partition walls for banks, hospitals and stations |
5. Greenhouses for vegetables, zoo, aquatic products |
6. Expressways soundpfoof panel |
